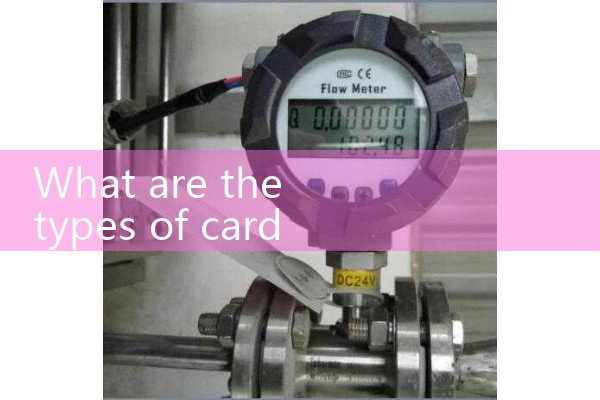

What are the types of card mounted flow meters | steam vortex flow meters?

『Card mounted flowmeter』Related information(v cone flow meter|rotary gas meter|gallon meter|gear meter|metal tube rotameter|glass tube rotameter|nutating disk meter|transit time ultrasonic flow meter|wedge flow meter|pd meters|hydraulic flow meter|ultrasonic water flow meter|water flow meter|air flow meter|magnetic water flow meter|oxygen flow meter|gas flow meter|argon flow meter|air velocity meter|gasoline flow meter|fuel flow meter|ultrasonic water meter|digital water meter|nitrogen flow meter|solid flow meter|Oxygen tank flow meter|digital water flow meter|diesel fuel flow meter|steam flow meter|02 flow meter|compressed air flow meter|oil flow meter|liquid flow meter)

1. What is the measuring structure of the flange mounted type? The so-called flange mounted vortex flowmeter is one of its measurement methods, and the flange mounted virtual macro installation is also the most commonly used and common structural measurement form. The body of the flange mounted vortex flowmeter does not have a connecting flange. Generally, when connected to the pipeline, the flowmeter is clamped between two specialized flanges and then bolted to the pipeline.

2. Technical parameters of plug-in vortex flowmeter

◆ Measurement medium: gas, liquid, vapor ◆ Connection method: flange card type, flange type, plug-in type ◆ Caliber specification: flange card type. Caliber selection: 25, 32, 50, 80, 100. ◆ Flange connected caliber selection 100, 150, 200 ◆ Flow measurement range Normal measurement flow velocity range Reynolds number 1.5 × 104~4 × 106; Gas velocity of 5-50m/s; The normal measurement flow range for liquid is 0.5-7m/s. The measurement ranges for liquid and gas flow are shown in Table 2; The steam flow range is shown in Table 3. The measurement accuracy is 1.0 level, 1.5 level, and 2.5 level. The temperature of the measured medium is normal temperature -25 ℃~100 ℃, high temperature -25 ℃~150 ℃ -25 ℃~250 ℃, which is easy to disperse. The output signal pulse voltage output signal is high level 8-10V and low level 0.7-1.3V. The pulse duty cycle is about 50%, and the transmission distance is 100m. The pulse current remote transmission signal is 4-20mA, and the transmission distance is 1000m. The instrument is used in a friendly environment. The temperature is -25 ℃~+55 ℃, and the humidity is 5-90% RH50 ℃. The material is stainless steel and aluminum alloy. The power supply is DC24V or

3. Qingdao Aobo ORB-LUGB Vortex Street Steam Flow Meter 80 Size

Qingdao Aobo ORB-LUGB Vortex Street Steam Model Monitoring Flow Meter DN80 Specification Parameters and Selection Guide

1. Core Parameters Nominal diameter: DN80 (flange mounted) Measuring medium: steam (saturated/superheated), gas, liquid Accuracy level: liquid ± 1.0%, gas/steam ± 1.5% Pressure resistance level: standard 1.6MPa/2.5MPa, customizable 4.0-10.0MPa Temperature range: -20 ℃~350 ℃ (special calibration required for high temperature steam) Body material: 304 stainless steel (contact medium part)

II. Key characteristics 1 Wide range ratio: usually up to 1:10~1:15, suitable for scenarios with large flow fluctuations No moving parts: using piezoelectric sensors to reduce wear and maintenance requirements Integrated display: On site LCD screen displays instantaneous/cumulative traffic in real-time Signal output: 4-20mA analog signal+pulse output, supporting RS485 communication (MODBUS protocol)

III. Selection precautions • Steam type: saturated steam requires temperature compensation, superheated steam requires temperature and pressure compensation • Installation requirements: front and rear
